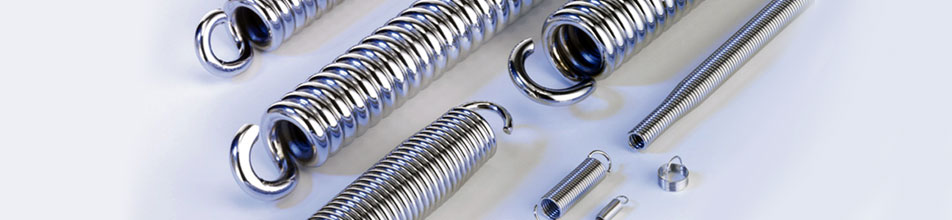

Extension Spring

Helical Extension Springs store energy and exert a pulling force. Usually they are made from round wire and are closewound with initial tension. It stressed in torsion in the body. Most helical extension springs are coiled with initial tension , equal to the minimum force required to separate adjacent coils. It do not normally have set removed. Unlike compression spring, helical extension springs do not have a solid stop to prevent overloading.

CSB Spring & Hardware Sdn Bhd manufactures custom extension spring in different types and configuration to suit your specifications on affordable minimum order quantity of 10 pcs

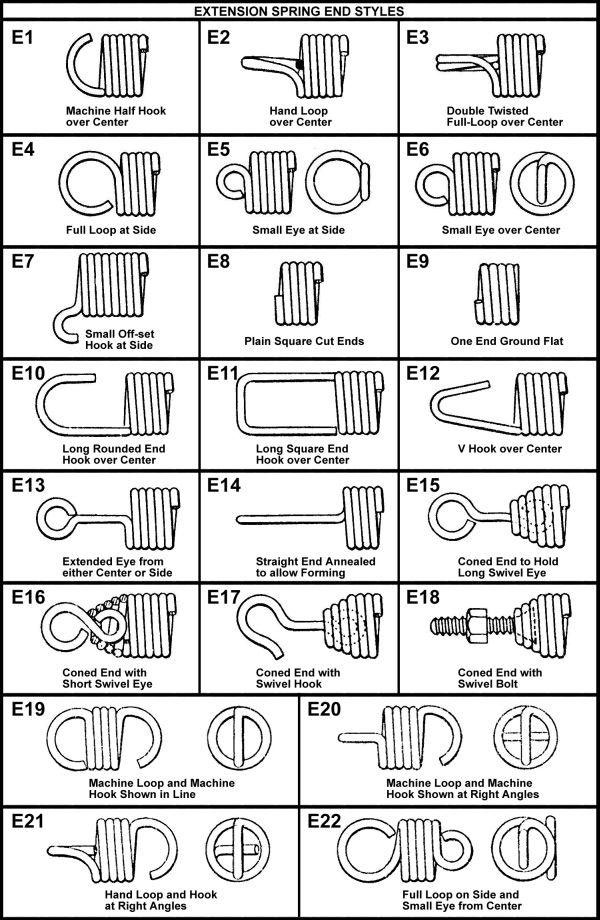

Different End Available

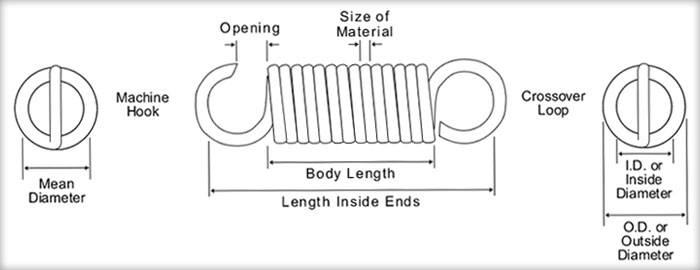

Spring Specification Diagram
